Product Description:

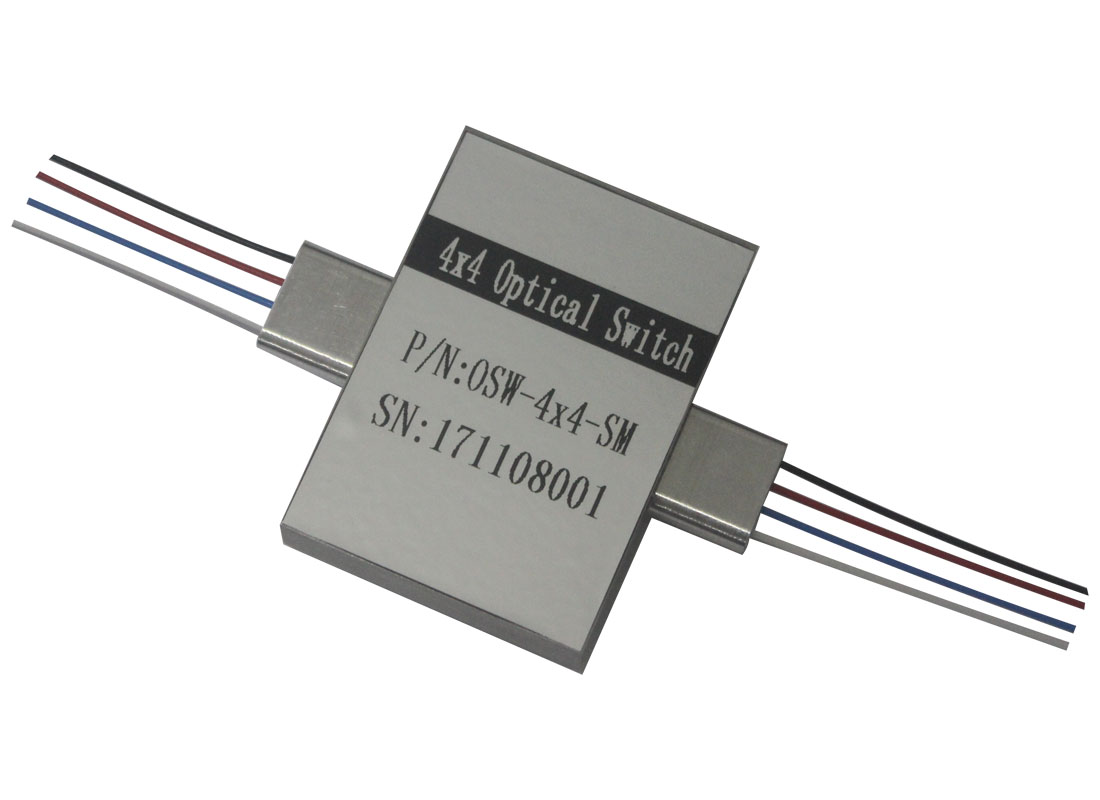

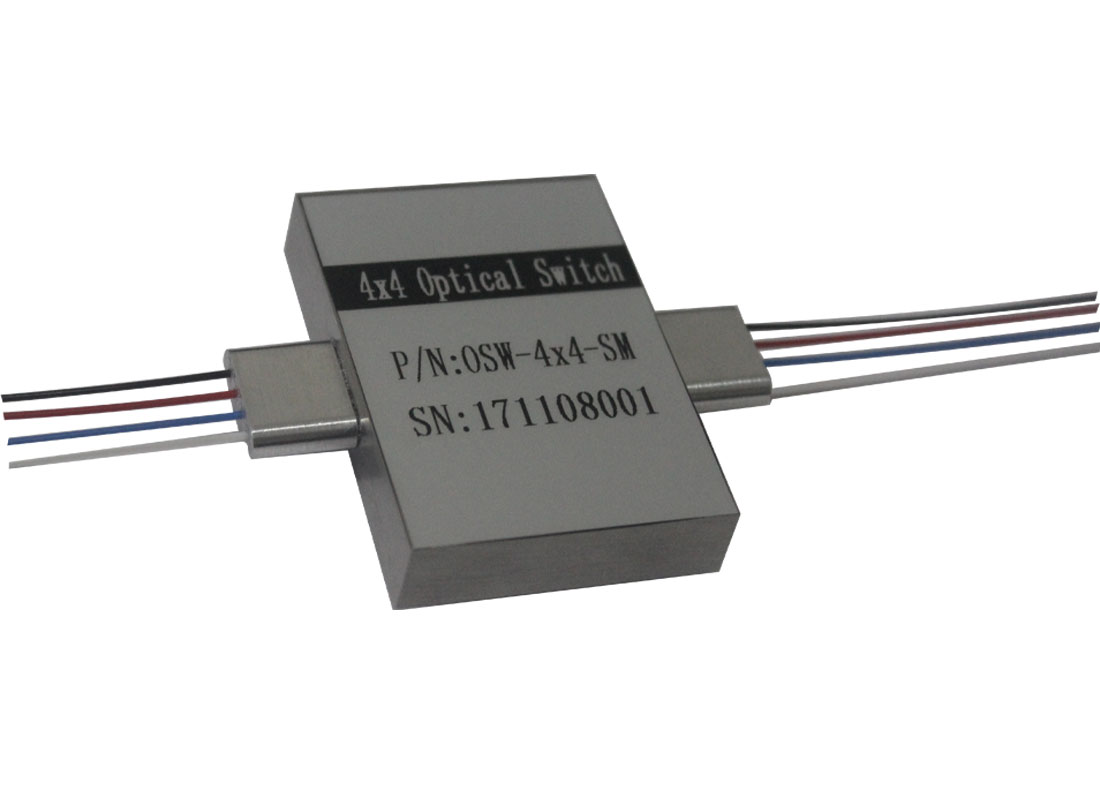

4X4 fiber optic switch connects optical channels by directing or blocking an incoming optical signal into the output fiber. This is achieved using a patent pen- ding opto-mechanical configuration and activated via an electrical control signal. Latching version preserves the selected optical path after the drive signal has been removed, while the non-latching versions default to either the open or closed state when power is removed. The switch has integrated electrical position sensors. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as unmatched low cost.
Applications： | Features： |
Channel Blocking | Unmatched Low Cost |
Configurable Add/Drop | Low Optical Distortions |
System Monitoring | High Isolation |
Instrumentation | High Reliability |
Epoxy-Free Optical Path |
Specifications:
Parameters | Unit | |
Operating Wavelength | 1260~1620(SM)、850(MM) | nm |
Insertion Loss | Typ.=0.8 ，Max.=1.2 | dB |
Wavelength Dependent Loss | ≤0.40 | dB |
PER (PM fiber) | >16 | dB |
Polarization Dependent Loss | ≤0.10 | dB |
Temperature Dependent Loss | ≤0.30 | dB |
Return Loss | SM≥50 MM≥30 | dB |
Cross Talk | SM≥55 MM≥35 | dB |
Switch Time | ≤15 | ms |
Repeatability | ≤±0.05 | dB |
Durability | ≥107 | times |
Operating Voltage | 3 or 5 | V |
Switch Type | Non-Latching or Latching | |
Operating Temperature | －20~＋70 | ℃ |
Storage Temperature | －40~＋85 | ℃ |
Optical Power | ≤500 | mw |

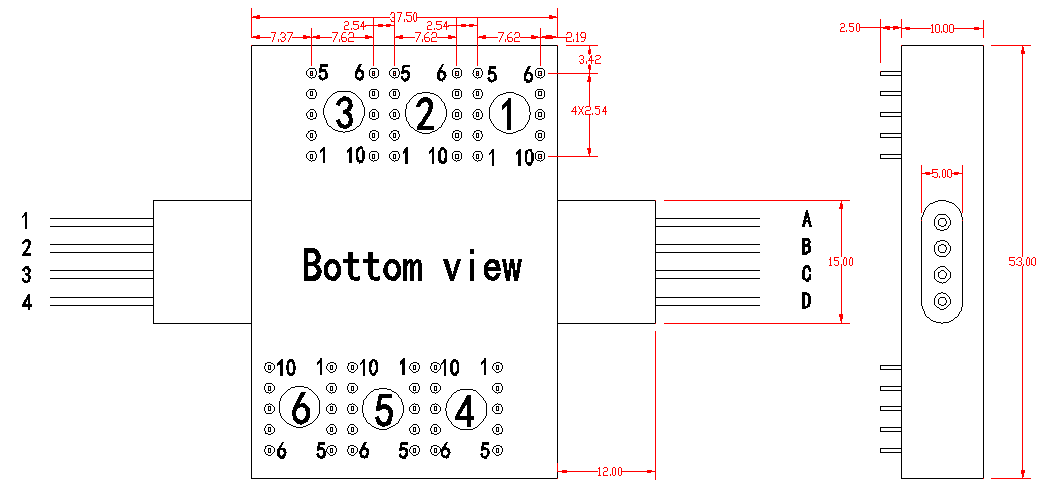

Dimension(L×W×H) | 53×37.5×10 | mm |

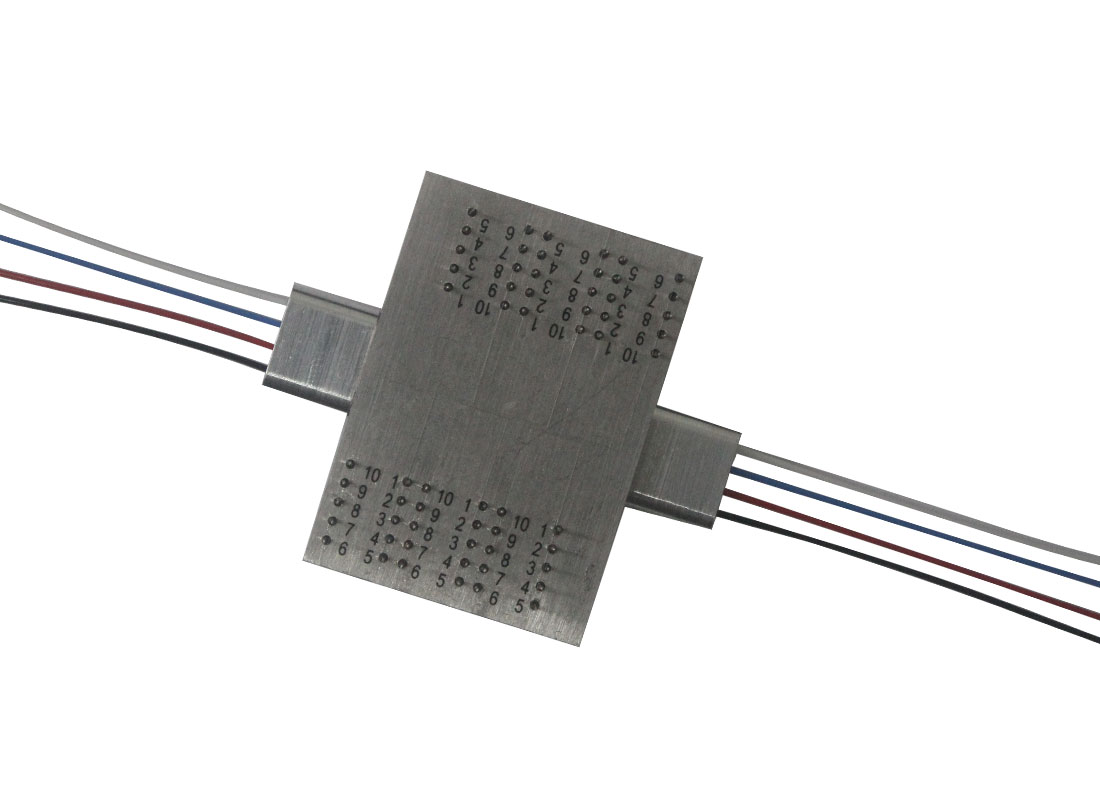

Pin Configurations:
Type | State | Electric Drive | Status Sensor | ||||||
4X4T | Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3 | Pin 3-4 | Pin 7-8 | Pin 8-9 | |
Latching | 0 | -- | -- | GND | V＋ | Close | Open | Open | Close |
1 | V＋ | GND | -- | -- | Open | Close | Close | Open | |
Non-latching | 0 | -- | -- | -- | -- | Close | Open | Open | Close |
1 | V＋ | -- | -- | GND | Open | Close | Close | Open | |
NO. | Optical Route | Relay | |||||
1 | 2 | 3 | 4 | 5 | 6 | ||
1 | A-1、B-2、C-3、D-4 | 1 | 1 | 1 | 1 | 1 | 1 |
2 | A-1、B-2、C-4、D-3 | 1 | 1 | 1 | 1 | 1 | 0 |
3 | A-1、B-3、C-2、D-4 | 1 | 1 | 1 | 1 | 0 | 1 |
4 | A-1、B-3、C-4、D-2 | 1 | 1 | 1 | 0 | 0 | 1 |
5 | A-1、B-4、C-2、D-3 | 1 | 1 | 1 | 1 | 0 | 0 |
6 | A-1、B-4、C-3、D-2 | 1 | 1 | 1 | 0 | 0 | 0 |
7 | A-2、B-1、C-3、D-4 | 1 | 1 | 0 | 1 | 1 | 1 |
8 | A-2、B-1、C-4、D-3 | 1 | 1 | 0 | 1 | 1 | 0 |
9 | A-2、B-3、C-1、D-4 | 1 | 1 | 0 | 1 | 0 | 1 |
10 | A-2、B-3、C-4、D-1 | 1 | 1 | 0 | 0 | 0 | 1 |
11 | A-2、B-4、C-1、D-3 | 1 | 1 | 0 | 1 | 0 | 0 |
12 | A-2、B-4、C-3、D-1 | 1 | 1 | 0 | 0 | 0 | 0 |
13 | A-3、B-1、C-2、D-4 | 1 | 0 | 1 | 1 | 0 | 1 |
14 | A-3、B-1、C-4、D-2 | 1 | 0 | 1 | 0 | 0 | 1 |
15 | A-3、B-2、C-1、D-4 | 1 | 0 | 0 | 1 | 0 | 1 |
16 | A-3、B-2、C-4、D-1 | 1 | 0 | 0 | 0 | 0 | 1 |
17 | A-3、B-4、C-1、D-2 | 0 | 0 | 1 | 0 | 0 | 1 |
18 | A-3、B-4、C-2、D-1 | 0 | 0 | 0 | 0 | 0 | 1 |
19 | A-4、B-1、C-2、D-3 | 1 | 0 | 1 | 1 | 0 | 0 |
20 | A-4、B-1、C-3、D-2 | 1 | 0 | 1 | 0 | 0 | 0 |
21 | A-4、B-2、C-1、D-3 | 1 | 0 | 0 | 1 | 0 | 0 |
22 | A-4、B-2、C-3、D-1 | 1 | 0 | 0 | 0 | 0 | 0 |
23 | A-4、B-3、C-1、D-2 | 0 | 0 | 1 | 0 | 0 | 0 |
24 | A-4、B-3、C-2、D-1 | 0 | 0 | 0 | 0 | 0 | 0 |

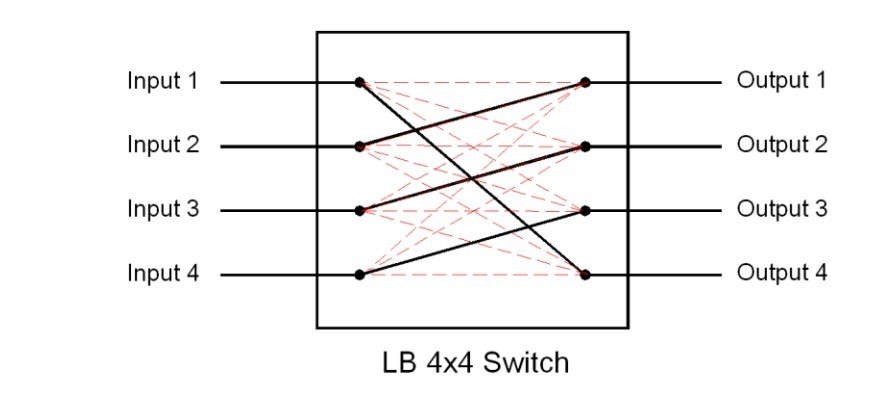

Optical Route：
Ordering Information:OSW-4X4T-B-C-D-E-F-G-H
A | B | C | D | E | F | G | H |
Type | Wavelength | Voltage | Switch Type | Fiber Type | Package | Fiber Length | Connector |
2X4T 3X4T 4X4T | 85=850 13=1310 15=1550 13/15=1310&1550
| 3=3V 5=5V | L=Latching N=Non-latching | SM=SM28 M5=50/125 M6=62.5/125 P4=PM460 P6=PM630 P7=PM780 P8=PM850 P13=PM1300 P15=PM1550 | 25=Bare fibe 90=900um tube | 05=0.5m 10=1.0m | None=00 FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC ST=ST/PC LC=LC/PC LA=LC/APC |
