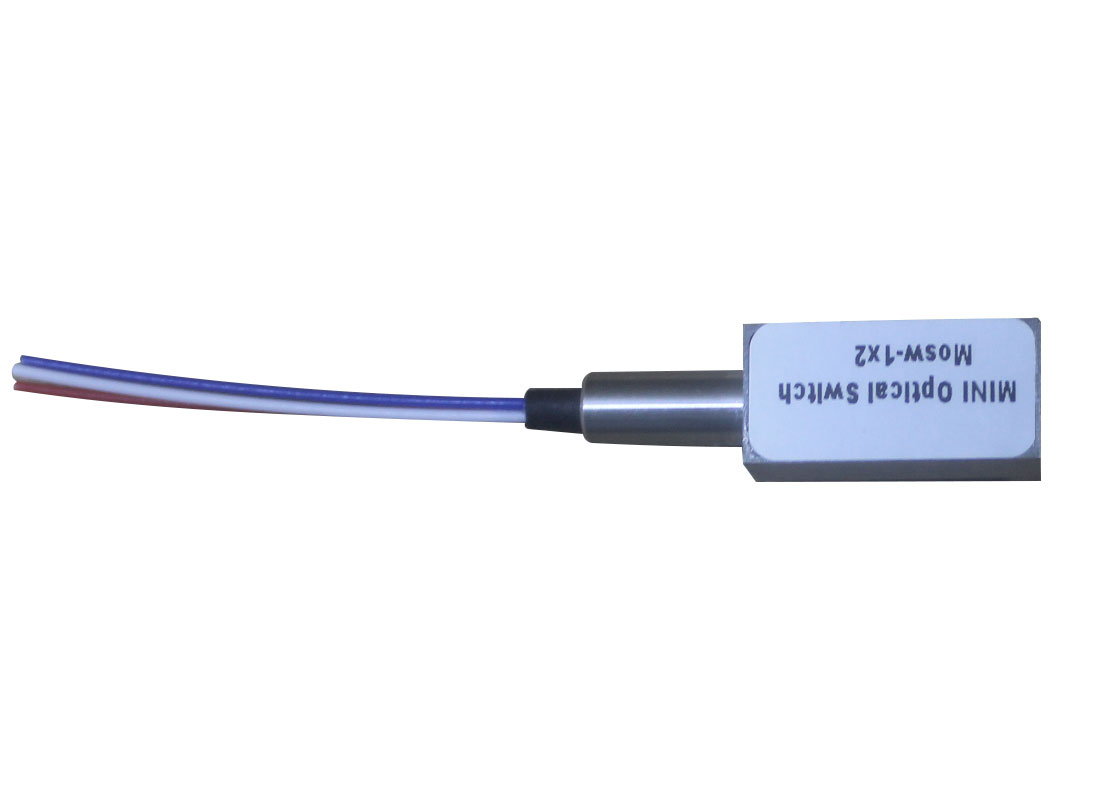

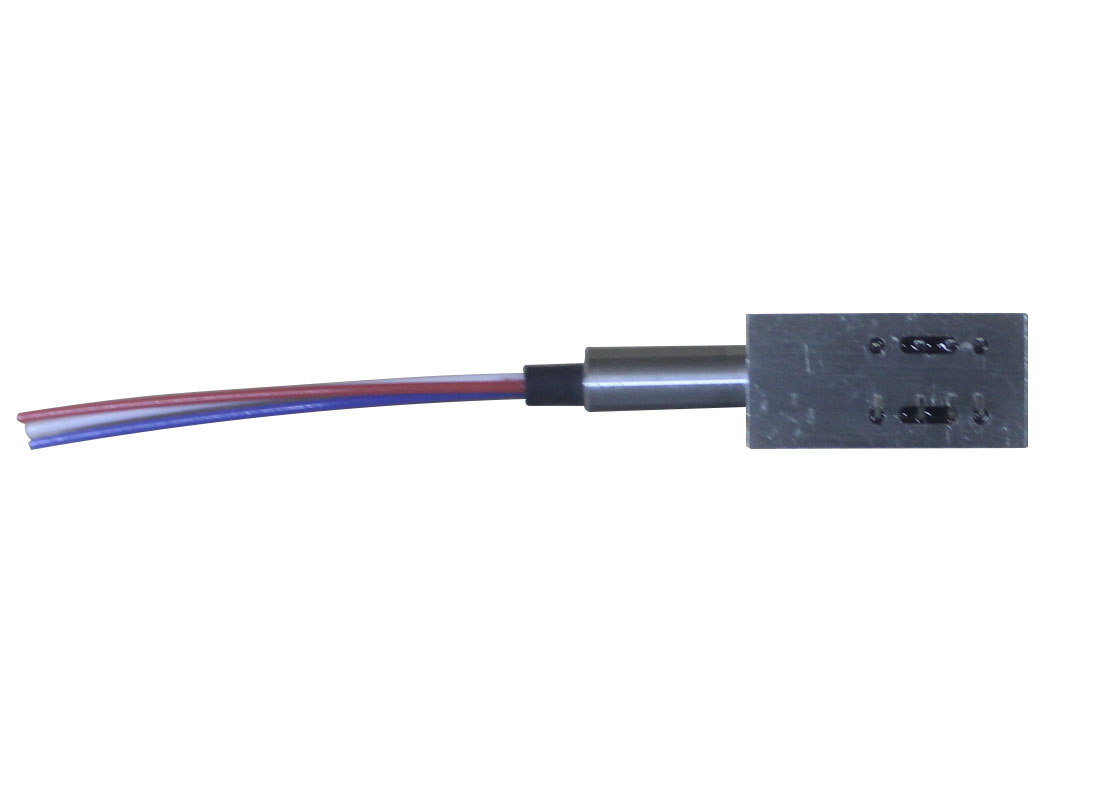

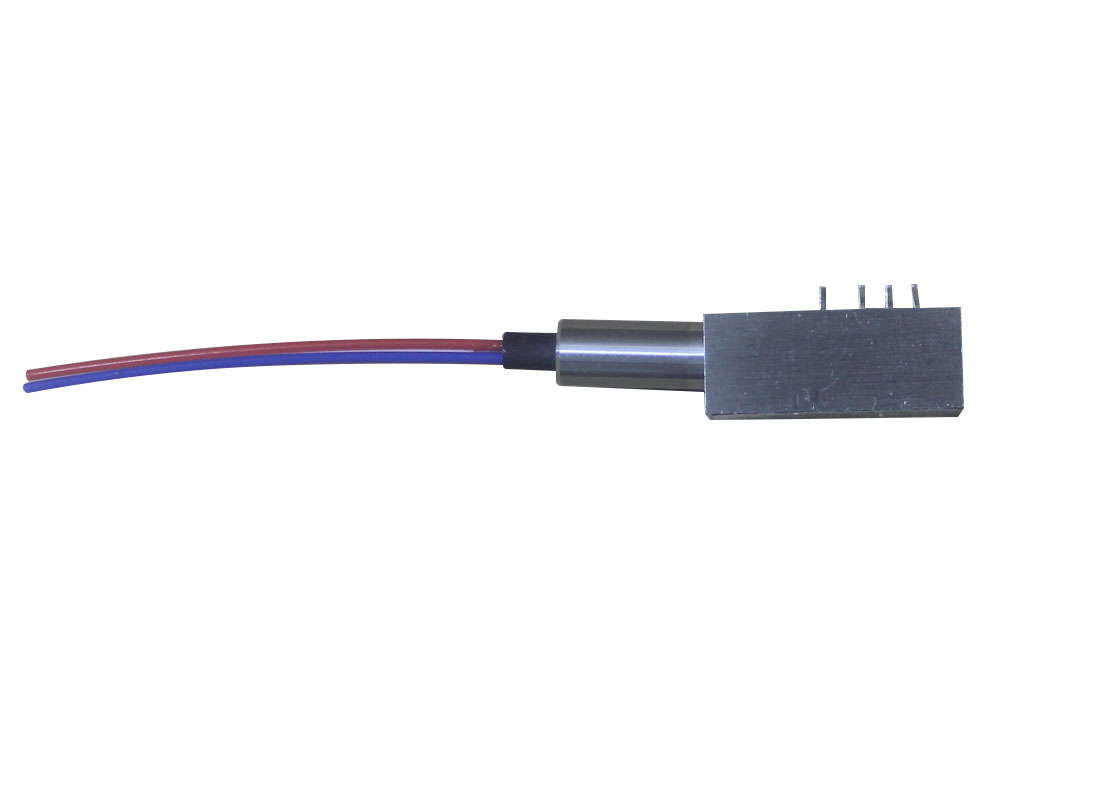

Coreray: Leading Fiber Optic Switch Manufacturer - MEMS & Mechanical Optical Solutions

Wavelength   Range

nm

650～1310

1260～1670

Testing   Wavelength

nm

650/780/850/980/1064/1310

1310/1490/1550/1625/1650

Insertion   Loss

2X2B

dB

Typ:0.8,Max:1.2

Typ:0.8,Max:1.0

Return   Loss

dB

≥30

≥50

Crosstalk

dB

≥35

≥50

PDL

dB

≤0.05

WDL

dB

≤0.25

TDL

dB

≤0.25

Repeatability

dB

≤±0.02

Power   supply

v

3.3 or 5.0

Lifetime

Cycle

≥10⁷

Switch   Time

ms

≤8

Transmission   Power

mW

≤500

Operation   Temperature

℃

-30～+85

Storage   Temperature

℃

-40～+85

Weight

g

16

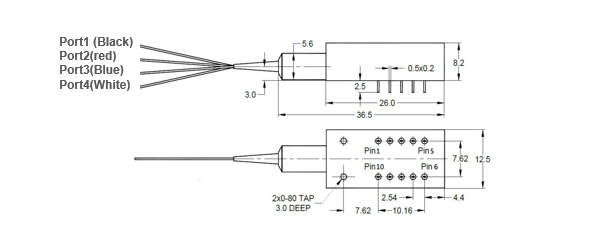

Dimension

mm

(L)26×(W)12.5×(H)8.2(±0.2)

2×2B

1

5

6

10

3－4,7－8

2－3,8－9

Latching

A

N/A

N/A

GND

+5V

OPEN

CLOSE

B

+5V

GND

N/A

N/A

CLOSE

OPEN

Non-Latching

A

N/A

N/A

N/A

N/A

OPEN

CLOSE

B

+5V

N/A

N/A

GND

CLOSE

OPEN

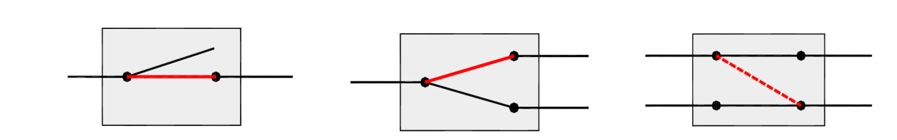

A

P1-P3

B

P1-P4/P2-P3

5V     Latching

4.5~5.5

36~44mA

125Ω

        5V      Non-Latching

4.5~5.5

26~32mA

175Ω

3V     Latching

2.7~3.3

54~66mA

50Ω

         3V     Non-Latching

2.7~3.3

39~47mA

70Ω

Mode

Wavelength

Voltage

Control   Model

Fiber   Diameter

Fiber   Length

Connector

1x1:1X1

D1x1:D1X1

1x2:1X2

2x2B:2X2Bypass

SM:9/125um

M5:   50/125um

M6:   62.5/125um

85:   850nm

13:   1310nm

14:   1490nm

15:   1550nm

162:   1625nm

165:   1650nm

13/15:1310/1550nm

3:   3V

5:   5V

L:   Latching

N:Non-Latching

25:250um

90:900um

05:0.5m

10:1.0m

15:1.5m

OO:None

FP:   FC/PC

FA:   FC/APC

SP:   SC/PC

SA:   SC/APC

LP:   LC/PC

LA:   LC/APC
